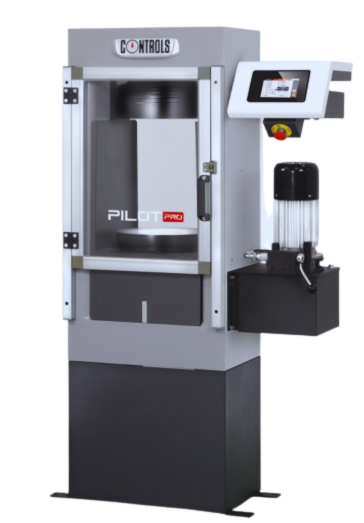

PILOT PRO COMPACT-Line Automatic Compression Machine

High-performance automatic compression testing system designed for precision, control, and compliance. Ideal for testing concrete cylinders up to 6" x 12".

Key Features:

• Capacity: 330,000 lbf [1500 kN]

• Cylinder size: up to 6” x 12” [160 x 320 mm]

• Conforms to ASTM C39 / AASHTO T-22

• Heavy-duty spherical seat with durable compression platens

  • Upper platen: 6.5" x 1.2" [165 x 30 mm]

  • Lower platen: 9.8" x 1.2" [250 x 30 mm]

PILOT PRO Automatic Control System:

• PID closed-loop control of load rate

• 250 Hz data sampling frequency

• Variable-speed PM DC motor for smooth performance

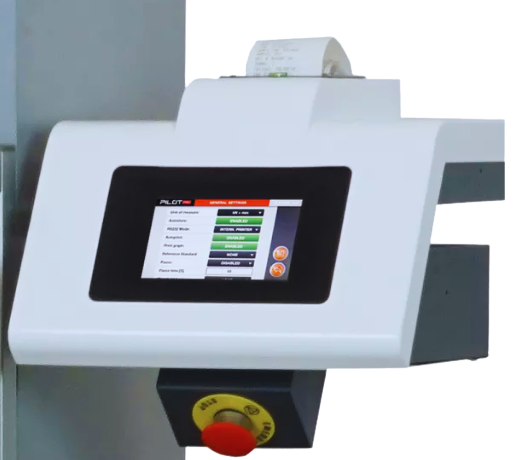

• 7” color touchscreen (800x480 resolution) *pictured below

Pilot Pro Brochure

       Contact us at 770.840.7060 and get yours on order today!
