Cgard - Silo Content Monitoring

SKU: Cgard-1

Number of silos: 1 Radar
Price:
Sale price$5,868.22

Manufacturer

iwi group

Description

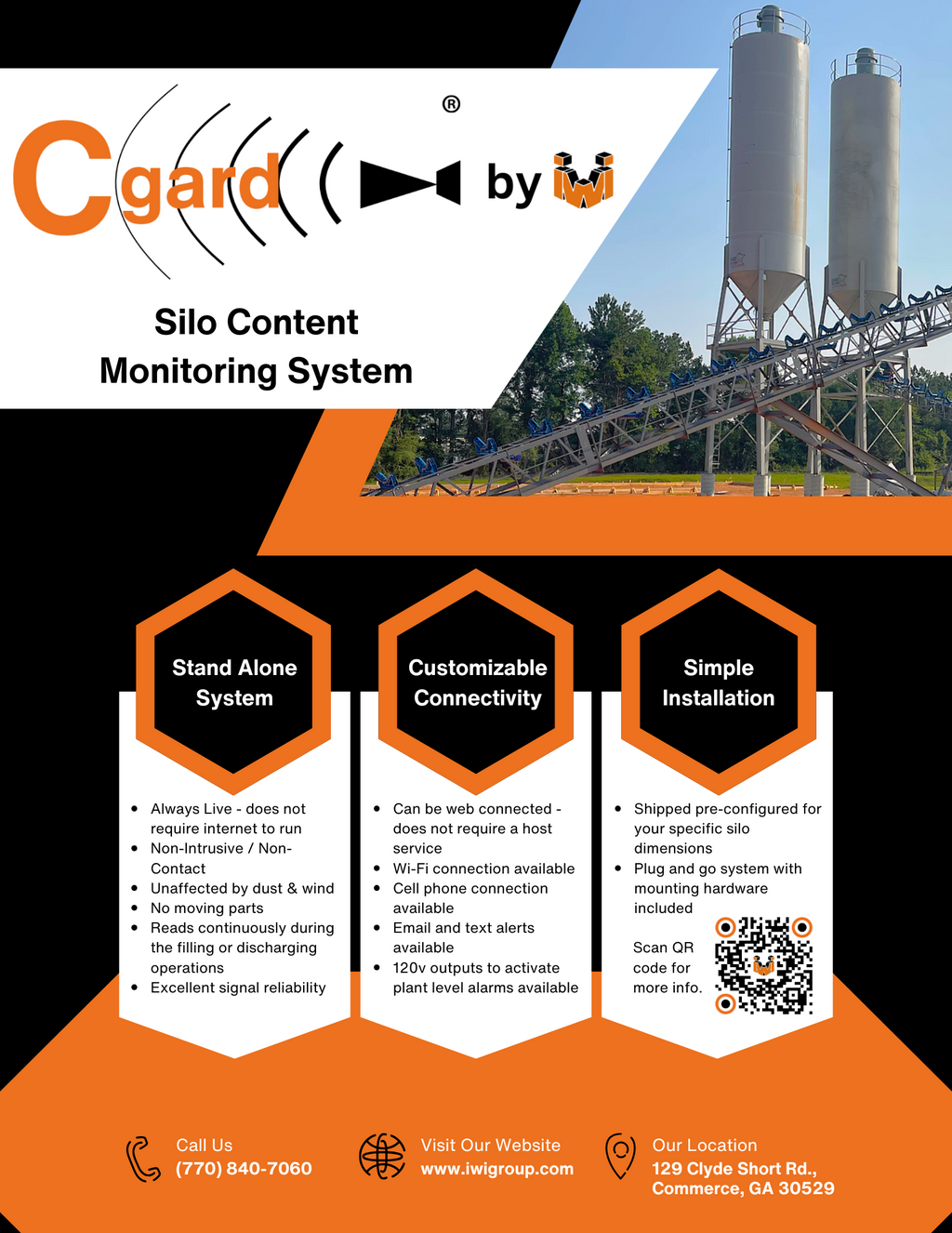

Benefits of Our Silo Content Monitoring System

  • Stand-alone system—web-connected, live at the plant level—does not require a host server

  • 120v outputs to activate plant level alarms

  • No monitoring/bandwidth fees

  • Non-intrusive/non-contact

  • Easy set-up/Shipped pre-configured

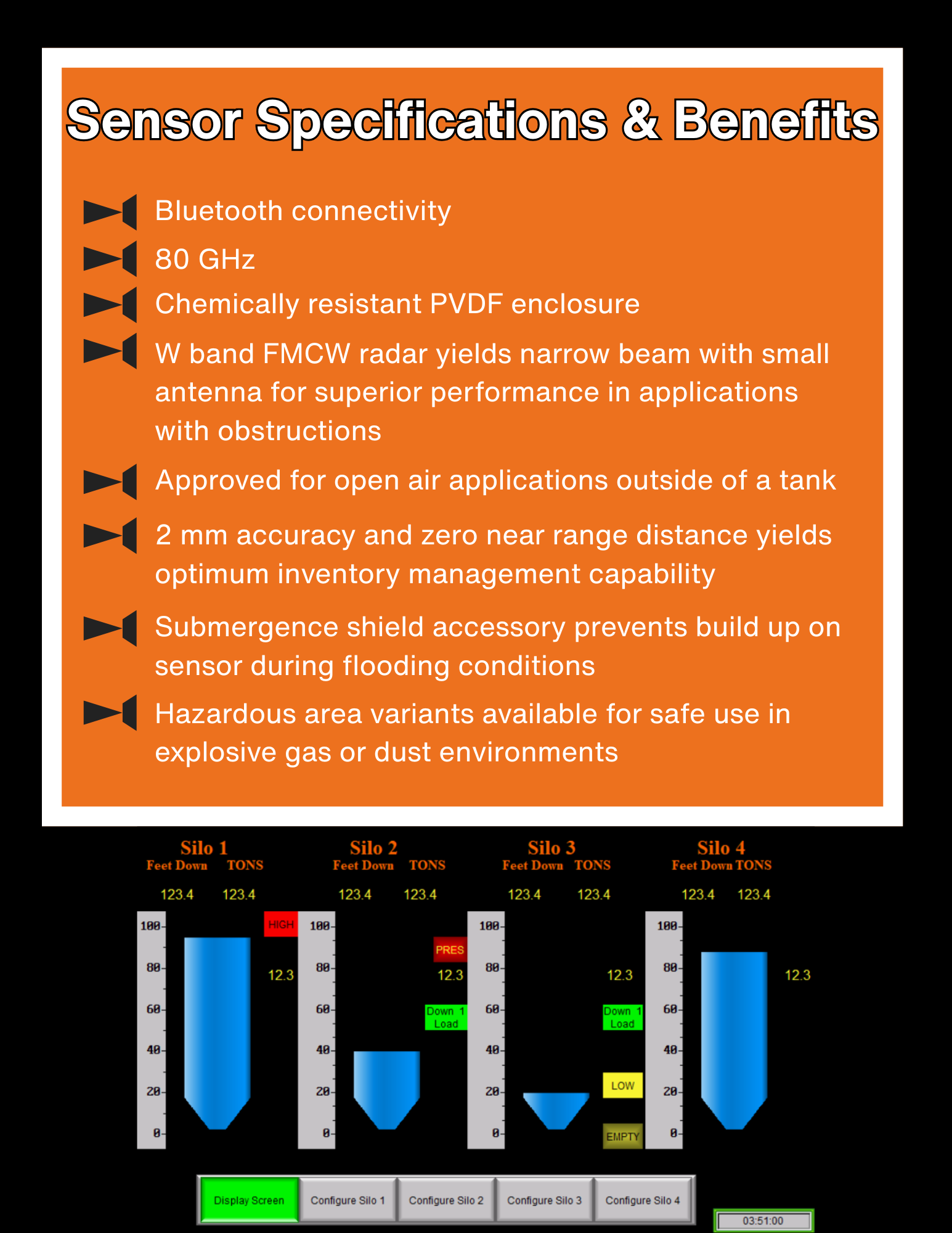

Sensor Benefits:

  • Chemically resistant PVDF enclosure
  • Modbus RTU (in preparation) communication for intelligent integration into your application
  • W band FMCW radar yields a narrow beam with a small antenna for superior performance in applications with obstructions
  • Approved for open-air applications outside of a tank
  • 2 mm accuracy and zero near range distance yields optimum inventory management capability
  • Submergence shield accessory prevents build up on the sensor during flooding conditions
  • Hazardous area variants available for safe use in explosive gas or dust environments
