Description

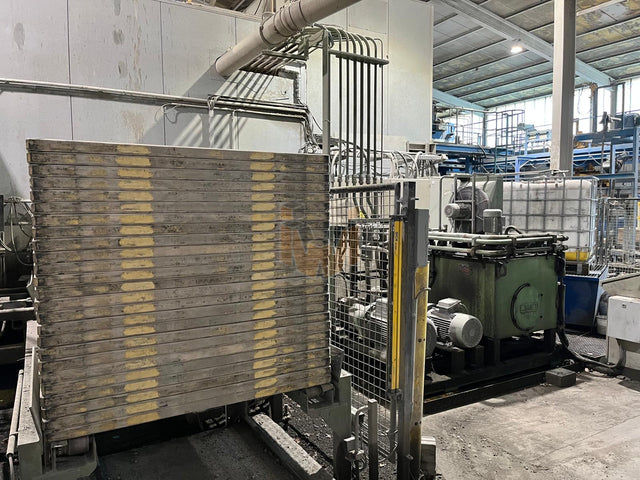

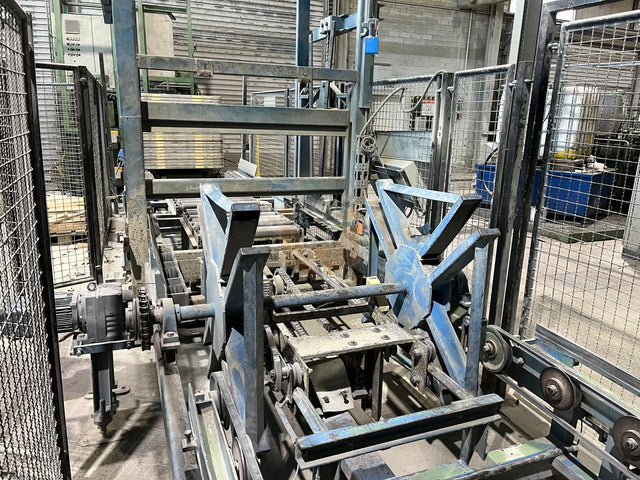

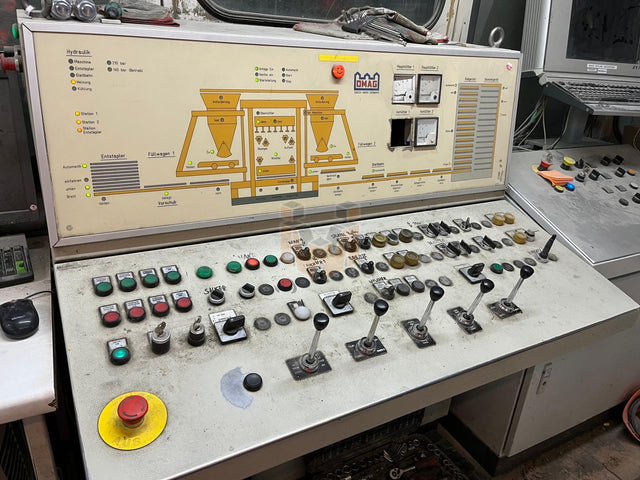

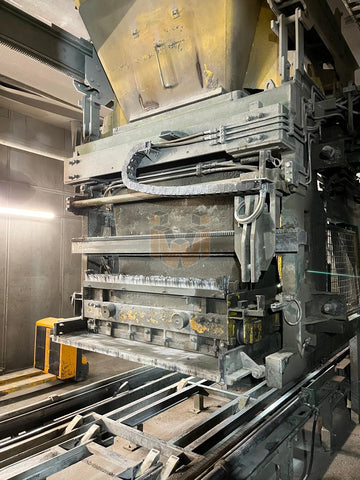

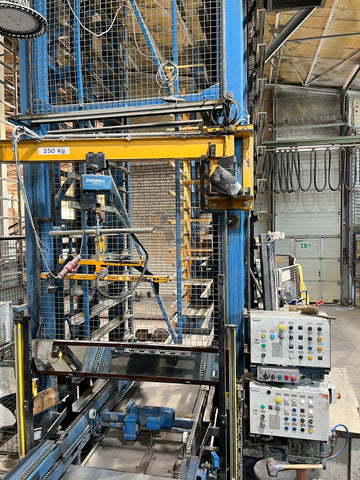

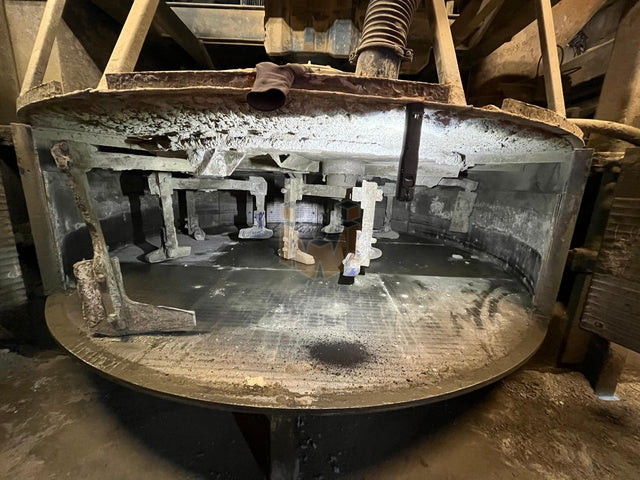

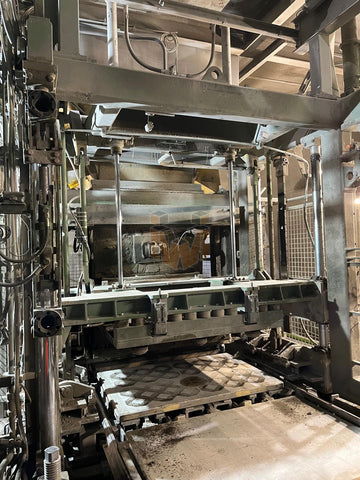

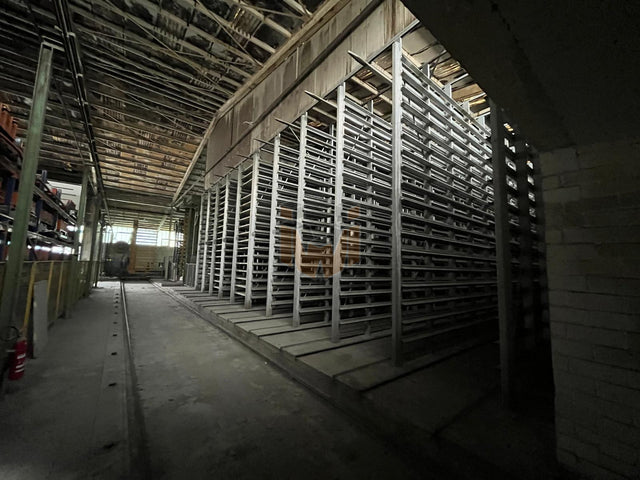

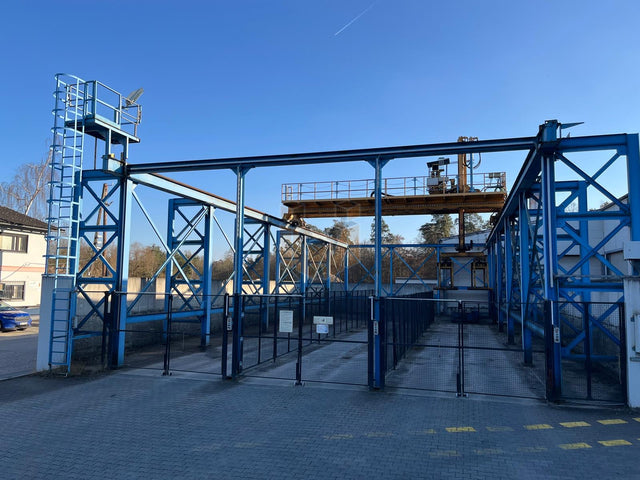

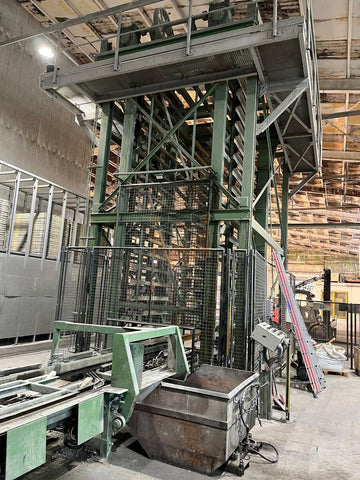

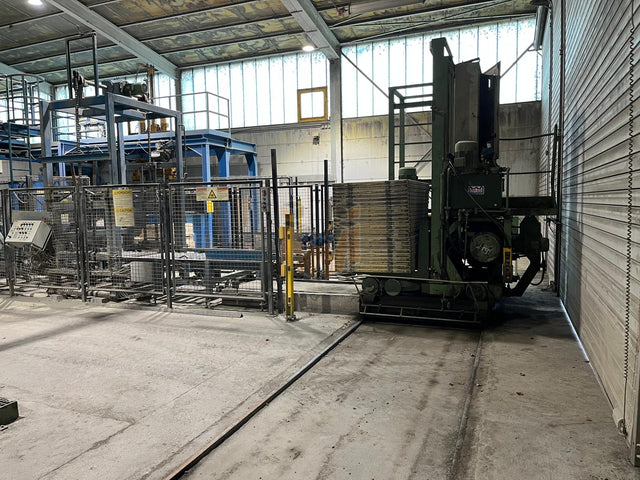

Omag Tronic 140/90-22 paver machine (1996): Several components of the mixing plant (e.g. base and face mixers), the bucket elevator, the wet side, transfer table, dry side, and packaging buffer were renewed in 2009. Simatic S5 control system with visualization by Frima; Cross cleaning system; Assyx 2,100 (1,400 x 1,000 x 50 mm) plastic boards (2015); Pneumatic quick-clamping device; Tilting device; Lifting elevator Drying rack; Lowering elevator; Hydraulic block remover; Hydraulic block doubler; Film applicator; Horizontal strapping system; Granulate spreader; Electric packaging unit; boards are moved to pallet width by means of a sliding table; Board cleaning brush; Belt conveyor; Board turner; Board stacking device for up to 25 boards; Board package transport including board buffer; buffer capacity: 1,450 boards; Buffer for 75 boards in front of the board remover; Board remover; Board inserter with extraction function; Board conveyor for transporting packages of approx. 18 pallets; Strip inserter with magazine; Insertion robot for wooden strips and plastic plates; Horizontal strapping; Vertical strapping; Automatic labeling; Block packaging crane with storage; storage capacity: 336 packages; Pallet magazine for Euro pallets; Two stair towers Feed hopper: 25 m3 Steep conveyor belt: AA, 50 meters, 650 mm belt width Distribution belt: AA, 10.5 meters, 650 mm belt width Aggregate silos: 7 steel silos, each 60 tons; 10 steel silos, each 28 tons Discharge belts: AA, 4.5 meters, 780 mm belt width Core Mixer with Elevator and Cement Scale Masa Mixer PH 2000-3000 (2009) Face Mixer with Elevator and Cement Scale Masa Mixer S 350-500 (2009) 2 steel silos, each 80 tons 1 steel silo, 2x40 tons Cement screws Weighing belts for core attachment: 2 x AA, 23.5 meters, 780 mm belt width Masa Double bucket elevator, each 2 m3 (2009) Sauter Mixing plant control system: Soft-PLC Sauter/Phoenix (2003) Brockhues Granulate dosing system (1997):
