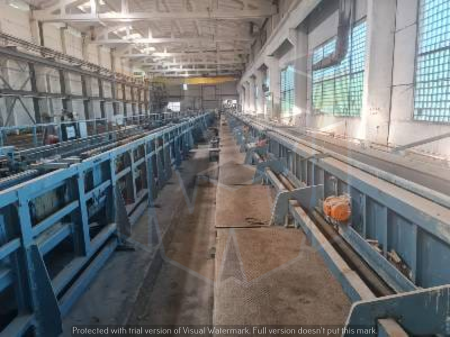

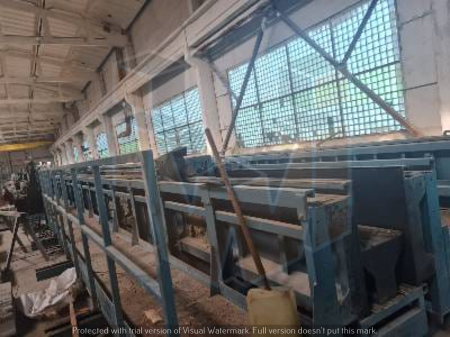

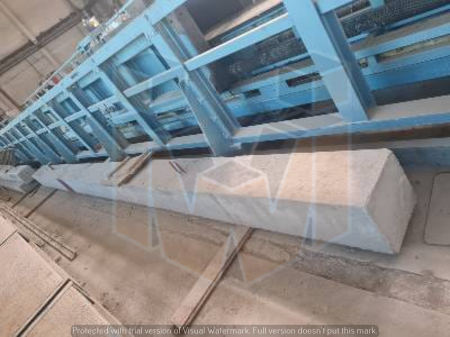

PLAN COLUMN AND BEAM CASTING BEDS (2011): Up to 600 m³ of precast elements per shift, with cross-sections ranging from 300×300 mm to 400×400 mm. Suitable for columns, beams, piles, foundation blocks and other precast elements. Included equipment: 1. Column Casting Bed – 70 m Consists of 5 sections, each 14 m long, with a maximum cross-section of 400×400 mm Serial numbers of sections: 165141, 165142, 165143, 165144, 165145 Equipment: IPP14 Voltage: 50Hz/42V Weight per section: 15.3 t Features: Vibration control for each section Hydraulic formwork side control (one movable side, one fixed side) Heating system with thermal control for the entire line Matlayer Sections can be sold separately. 2. Beam Casting Bed – 105 m Designed for prestressed elements (beams, up to 400×400 mm) Machine type: CTR105 Serial number: 164911 Voltage: 380V/42V Weight: 99.57 t Features: 400 t cassette tensioning system, wire strand cutting machine Universal bed cleaning and preparation machine Dividers/formwork separators Vibration system Hydraulic formwork side control Heating system with thermal control
