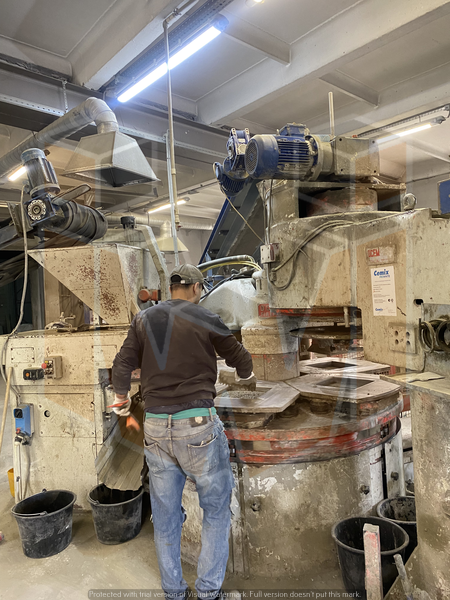

Ocem OPA 540/D automatic rotary press w/5 stations (2014): for the manufacturing of terrazzo and concrete tiles. Maximum height of the tiles with the OCEM single stroke extractor carriage: 41 mm approx.; Net weight, 1 series of moulds 2 vibrating stations; an automatic hopper for the charging of the second layer into the moulds with a simple scraper; pneumatic ejector with adjustable stroke; an extractor carriage - SLIM 140 - with horizontal translation by means of toothed belt, no foundations required. 1 COMPLETE SET OF MOULDS 300X300 MM WITH 1 CAVITY for the production of double layer tiles. 1 STP 425 AUTOMATIC DOSER FOR THE FIRST LAYER OF TILES: assembled on column, fitted with a planetary mixing device, a small removable charging hopper, a tank with interchangeable walls, a level feeler, a hydraulic unit and accessories. Dosing equipment with 1 cavity. 1 Cassani 100/003 DD linear grinding machine: to calibrate the top side of the tiles, with 3 heads, fitted with electric motors of the following power: First calibrating head with a 40 HP motor for abrasives; Second calibrating head with a 30 HP motor for abrasives; Third calibrating head with a 20 HP motor for abrasives. Fitted with an electric and electronic device for the control and running of the production. Technical features of the machine: Diameter of the diamond disk: 570 mm.; Workable tiles size: 20x20 (double row); 25x25, 30x30, 40x40 (single row); The machine is delivered with: 4 discs grinding wheels. OP2/1-50 150T Semi-Automatic linear tile moulding press (2018): for the manufacturing of terrazzo and concrete tiles. 1 COMPLETE SET OF MOULDS 500x500 MM WITH 1 CAVITY 1 COMPLETE SET OF MOULDS 200x200 MM WITH 4 CAVITIES 1 COMPLETE SET OF MOULDS 100x200 MM WITH 6 CAVITIES
